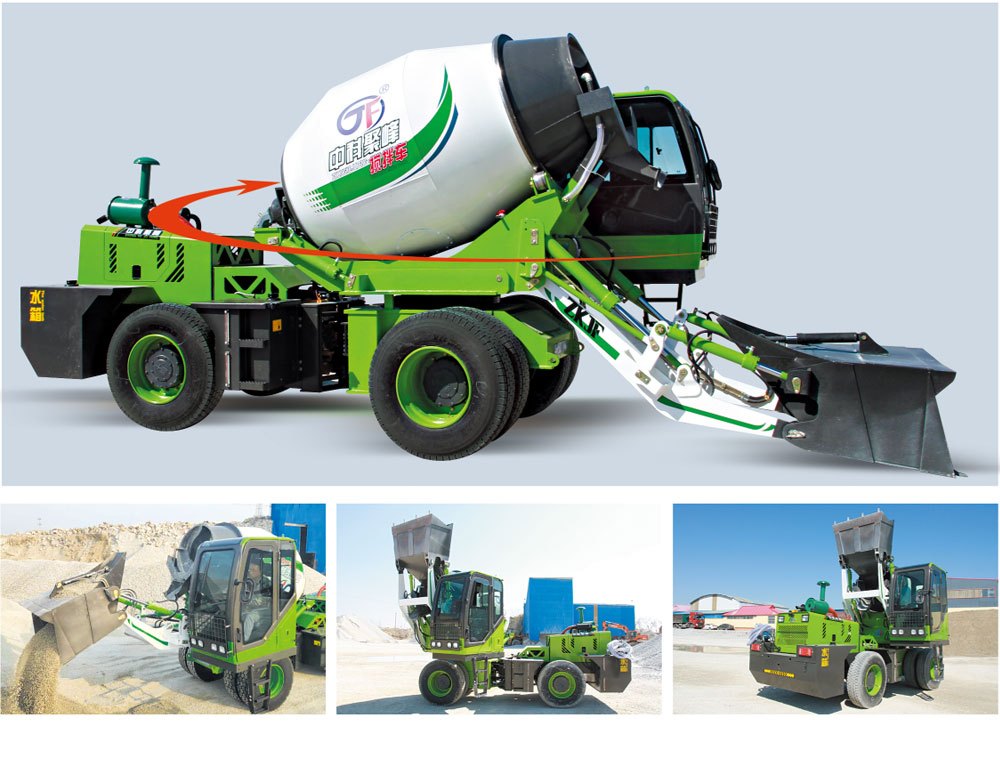

自上料攪拌車計量系統的維護事項
計量系統在自上料攪拌車中是必不可少的。如果計量系統缺失，自上料攪拌車的各個環節都會變得非常麻煩。各種原料需要自己稱重，然后混合攪拌，會浪費很多錢。時間和人力都被浪費了。因此，計量系統也需要經常維護。那么自上料攪拌車計量系統的維護事項是怎樣的呢？
The metering system is essential in the self loading mixer. If the metering system is missing, all links of the self loading mixer will become very troublesome. All kinds of raw materials need to be weighed and then mixed, which will waste a lot of money. Time and manpower are wasted. Therefore, the metering system also needs regular maintenance. So what are the maintenance items of the metering system of the self loading mixer?
所有軟連接的紅色膠管和稱量斗內的波紋管在自然狀態下不處于張緊狀態，否則會影響稱量精度。傳感器安裝后只能承受正壓（懸臂或壓力傳感器）或正拉力（S型或拉力傳感器），不能承受扭矩。
All soft connected red rubber hoses and corrugated pipes in the weighing bucket are not in tension under natural conditions, otherwise the weighing accuracy will be affected. After installation, the sensor can only bear positive pressure (cantilever or pressure sensor) or positive tension (S-type or tension sensor), not torque.
同一桿秤，其傳感器（3個或4個）必須為相同型號和規格。因此，在安裝傳感器時，一定要檢查銘牌上的內容是否一致。不同規格的傳感器可能具有相同的外觀。
The sensors (3 or 4) of the same scale must be of the same model and specification. Therefore, when installing the sensor, be sure to check whether the contents on the nameplate are consistent. Sensors of different specifications may have the same appearance.
在稱重斗上焊接時，必須斷開控制電源，并將傳感器短接或將焊機的地線直接放在稱重斗上，以免在過程中通過傳感器的電流過大焊接損害。寮式傳感器（s型）安裝好后，需要擰緊鎖緊螺母，懸吊螺絲不能卡住傳感器槽根，即懸吊之間應有10mm左右的間隙螺釘和傳感器槽根。
When welding on the weighing bucket, the control power supply must be disconnected, and the sensor must be short circuited or the ground wire of the welding machine must be directly placed on the weighing bucket to avoid excessive welding damage caused by excessive current passing through the sensor in the process. After the installation of the squatter sensor (S-type), the lock nut needs to be tightened, and the suspension screw cannot jam the sensor slot root, that is, there should be a gap of about 10mm between the suspension screw and the sensor slot root.
設備日常的檢查工作要做好，檢查主攪拌機手動（自）油泵的相關情況，確認是否需要添加潤滑脂。所有潤滑點應按制造商的設計要求進行潤滑；主要潤滑點有：卸料門軸、儲料斗和稱量斗門軸、壓輥和皮帶輸送機托輥、軸承和托輥、傳動鏈、大齒輪等。
The daily inspection of the equipment shall be done well. Check the relevant conditions of the manual (self) oil pump of the main mixer and confirm whether it is necessary to add grease. All lubrication points shall be lubricated according to the design requirements of the manufacturer; The main lubrication points include: unloading door shaft, storage hopper and weighing bucket door shaft, pressure roller and belt conveyor idler, bearing and idler, transmission chain, large gear, etc.
每天檢查設備的工作情況，打開儲氣罐底部的排水閥，將里面的水排掉。檢查氣壓是否符合制造商的設計要求。檢查電氣接觸器，確認繼電器上的靜、動觸點是否完好，必要時拆下更換。檢查主機皮帶的張緊和磨損情況，保證主機正常運轉。
Check the working condition of the equipment every day, open the drain valve at the bottom of the air tank and drain the water inside. Check whether the air pressure meets the manufacturer's design requirements. Check the electrical contactor, confirm whether the static and dynamic contacts on the relay are intact, and remove and replace them if necessary. Check the tension and wear of the host belt to ensure the normal operation of the host.
自上料攪拌車廠家認為還需要檢查攪拌臂、葉片、刮板等易磨損件和備件，并根據檢查結果進行必要的間隙調整。磨損嚴重時，及時更換。檢查振動器上的連接螺栓是否松動，必要時擰緊。等等。
Since the manufacturer of the loading mixer truck believes that it is also necessary to check the easily worn parts and spare parts such as mixing arm, blade and scraper, and make necessary gap adjustment according to the inspection results. In case of serious wear, replace it in time. Check whether the connecting bolts on the vibrator are loose and tighten them if necessary. wait.
此外，自上料攪拌車的所有設備安裝完畢，與電氣控制系統連接，并經業主單位和供貨商相關人員檢查認可后，由機電等相關人員共同進行調試。測試的目的是確認設備安裝是否成功，與電控系統的連接是否正確，機電設備的性能和經濟技術指標是否符合合同要求。
In addition, after all the equipment of the loading mixer is installed, connected with the electrical control system, and checked and approved by the relevant personnel of the owner and the supplier, the electromechanical and other relevant personnel shall jointly carry out the commissioning. The purpose of the test is to confirm whether the equipment installation is successful, whether the connection with the electric control system is correct, and whether the performance and economic and technical indicators of electromechanical equipment meet the contract requirements.
自上料攪拌車計量系統的維護事項以及整體的維護事項便是這樣了，如果客戶想購買質量高，性能好的攪拌機，不如就來我們網站www.bflrsn.cn看看相關信息且咨詢客服人員吧。
This is the maintenance of the metering system of the loading mixer and the overall maintenance. If customers want to buy a mixer with high quality and good performance, they might as well come to our website www.bflrsn.cn Com see the relevant information and consult the customer service staff.
